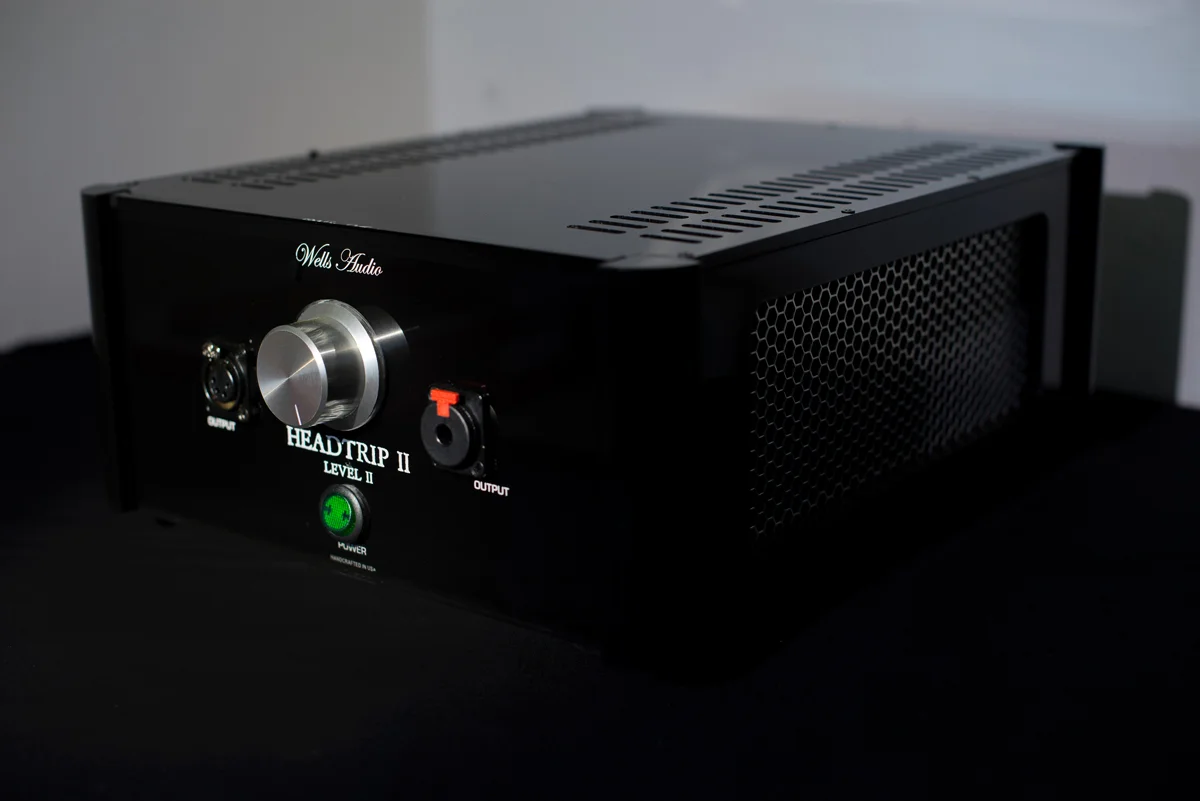

Meet HeadTrip II Level II

$15,000.00 USD

Under construction



The Headtrip II Level II is the ultimate stereo performance extension of the Headtrip II headphone amplifier. It builds upon the performance by employing ultra premium and in many cases state-of-the-art parts. The Level II has our reference PCBs which substitute 19 Vishay “naked z foil”‘ hand built resistors for all of the resistors in the signal path. These resistors which average $12.00 apiece replace resistors that average 6 cents each. The bias pot is also a bulk foil Vishay which costs $40.00 each and replace a pot that runs about 75 cents apiece. Input coupling caps have been substituted with Rike copper foil, polypropylene, paper-in-oil caps. The PCBs and all wire is cryo treated, the input coupling caps and transformer are wrapped with mumetal to shield EMF and all wiring leading to and away from the critical attenuator connections are hand built coaxial cables to reject noise. To finish it all off billet aluminum feet are added. All of these added improvements are made to seek out the absolute state-of-the-art sounding headphone amplifier available today.

Technical Specs

  • Phone impedance: 4 to 2000 Ohms

  • Power output: 50w/channel at 8 ohms, 25W/channel at 32 Ohms

  • 1.8W/channel at 600ohms

  • Distortion: <0.006% at 1Khz at .1W to 100W at 4 Ohms

  • Frequency Response: +/-0.25db from 10Hz to 50Khz

  • Signal to Noise ratio: -103 db at full power

  • Input Impedance: 20K Ohms

  • Input Sensitivity: 85 mv

  • Gain: 30 db

  • Voltage: 120v, 230v, at 50/60 Hz

  • Inputs: 1 pair WBT Nextgen RCAs or 1 pair XLRs

  • Outputs: 1 pair Neutrik combo ¼ inch/XLR outputs

  • Upgraded Rike PIO input coupling capacitors

  • Khozmo stepped attenuator with gold plated connections

  • Furutech gold plated IEC

  • Dimensions: 12.25” x 14” x 5"/ 16” x 14” x 8” shipped

  • Weight: 20 lbs./26 Lbs. shipped

Headtrip II Level II monoblock headphone amplifiers

The absolute state-of-the-art Headtrip II Level II monoblock headphone amplifiers are currently in production. Performance will set the standard for state-of-the-art headphone amplification for years to come. Retail price is $30,000.00usd.



Call (408) 376-0861 to order your Headtrip today.
